Efficient Electric Fabric Cutter

Understanding the Electric Fabric Cutter Machine

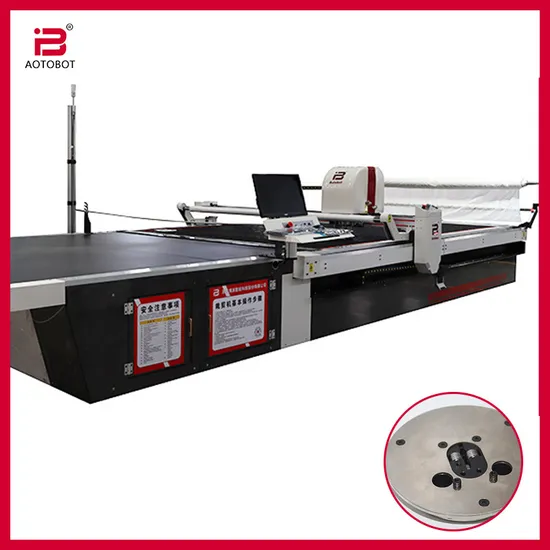

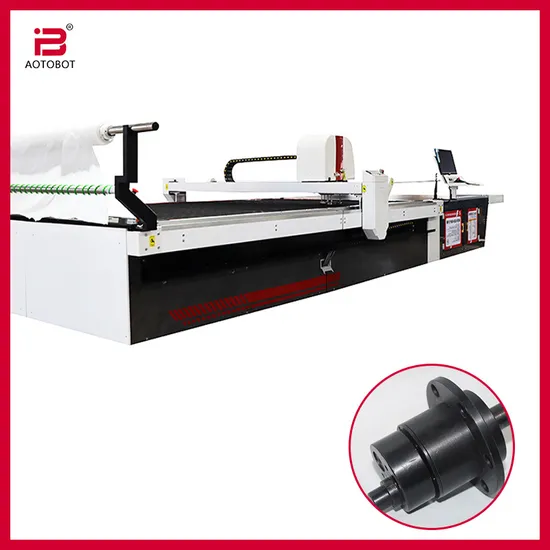

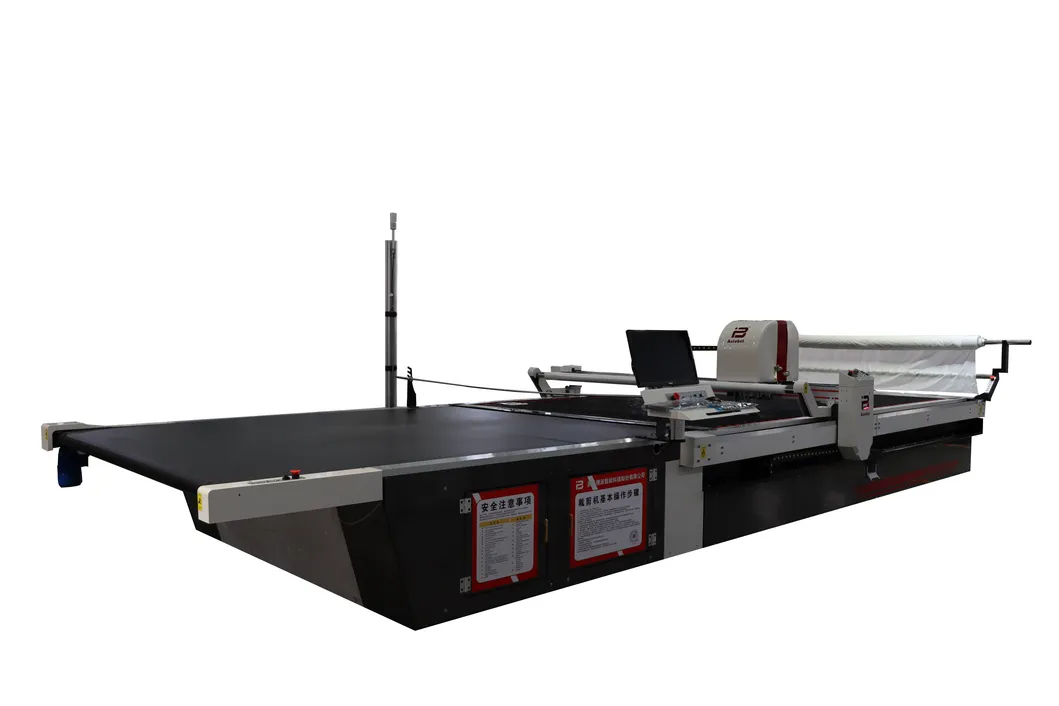

The Electric Fabric Cutter Machine (Model: T1691) by AOTOBOT is an intelligent cutting solution designed for soft material processing across multiple industries. Integrating 40 years of Japanese cutting technology and independent R&D, this automatic cutting equipment stands out for its high efficiency, precision, and versatility. It addresses the core needs of factories seeking to enhance production speed, reduce material waste, and achieve standardized cutting—making it a cornerstone tool for modern manufacturing in textiles, outdoor gear, medical supplies, and more. With CE and ISO certifications, the machine meets international quality standards, ensuring reliability for global users.

Product Parameters

Parameter	Details
Model NO.	T1691
Power Source	Electric (Three-phase 380V, 22KW)
Automatic Grade	Automatic
Warranty	1 year
Certification	CE, ISO
Cutting Width	1600mm
Cutting Length	9000mm
Maximum Cutting Height	30mm
Cutting Method	Straight knife reciprocating clipping
Knife Specifications	Automatic sharpening; Width 8mm, Thickness 2.0mm/2.5mm
Top Speed	60m/min
Cutting Accuracy	±1mm
Drill Sizes	Solid 1.6mm, 2mm, 3mm
Machine Dimensions	2100×2130×1200mm
Weight	3000kg
Vacuum Method	Separate frequency conversion adsorption
Operating System	PC desktop computer; Languages: Chinese, English
Compressed Air Requirement	-20KP
Standard Color	White
Customization	Available



Functionality of the Electric Fabric Cutter Machine

Core Cutting Functions

The machine adopts straight knife reciprocating clipping technology, paired with automatic sharpening knives to maintain consistent cutting performance. Its high-precision positioning system supports automatic drilling (for 1.6-3mm solid drills) and multi-line cutting via transverse machine movement, adapting to complex cutting layouts.

Intelligent Auxiliary Functions

Automatic covering film: Protects materials from dust and damage during processing.

Automatic cleaning bristle device: Ensures a clean cutting surface for stable precision.

Automatic air float linkage device: Reduces friction between materials and the workbench.

Fault detection indicator: Alerts operators in real time to minimize downtime.

Separate vacuum pump with multi-section control: Delivers strong adsorption pressure to fix materials firmly, even for thin or impermeable fabrics.

Characteristic Advantages of the Electric Fabric Cutter Machine

High Efficiency

Equipped with AOTOBOT’s patented double blade plate design, the machine doubles cutting speed compared to single-blade alternatives, reaching a top speed of 60m/min. The new crankshaft cutter conveyor reduces noise and enhances cutting strength, while minimizing vulnerable parts for long-term stable operation.

Superior Precision & Reliability

With a cutting accuracy of ±1mm, the machine meets strict quality requirements for high-end products. Key components (including YASAKAWA motor and drive system) are imported from Japan, ensuring durability and compliance with Japanese manufacturing standards.

User-Friendly & Versatile

The bilingual operating system (Chinese/English) simplifies operation for global teams. Customizable options (knife cooling, device movement) allow adaptation to diverse material types, from textiles to glass fiber and aerospace materials.

Applications of the Electric Fabric Cutter Machine

The Electric Fabric Cutter Machine is widely used in:

Traditional industries: Textiles, clothing, home furnishings (sofa seats, curtains).

Outdoor & leisure: Outdoor tents, yacht upholstery.

Specialized fields: Medical supplies, industrial textiles, glass fiber products, bulletproof materials, synthetic materials.

It has been exported to over 80 countries, trusted by manufacturers in Germany, the US, Brazil, Vietnam, and India.

FAQ About the Electric Fabric Cutter Machine

Is AOTOBOT a factory or trading company?

ZHEJIANG BOPAI INTELLIGENT TECHNOLOGY CO., LTD. (AOTOBOT) is a national high-tech enterprise with over 15 years of manufacturing experience in intelligent cutting equipment. We specialize in R&D, production, sales, and service, with products exported to 80+ countries.

What makes your machine stand out from competitors?

Our cutting system inherits 40 years of Japanese technology, paired with a patented double blade plate for doubled speed. We use imported core components (e.g., YASAKAWA motor) and integrate intelligent features like automatic bristle cleaning and air cooling, ensuring efficiency and reliability.

Do you provide installation and after-sales service?

Yes. Our professional after-sales team consists of engineers with 10+ years of experience. We offer on-site training and installation globally, supported by local distributors for daily maintenance and support.

How do you guarantee product quality?

Our products exceed domestic standards and comply with Japanese manufacturing requirements. All key devices are imported from Japan, and we have 40+ years of manufacturing experience—ensuring machines run stably with minimal issues.
