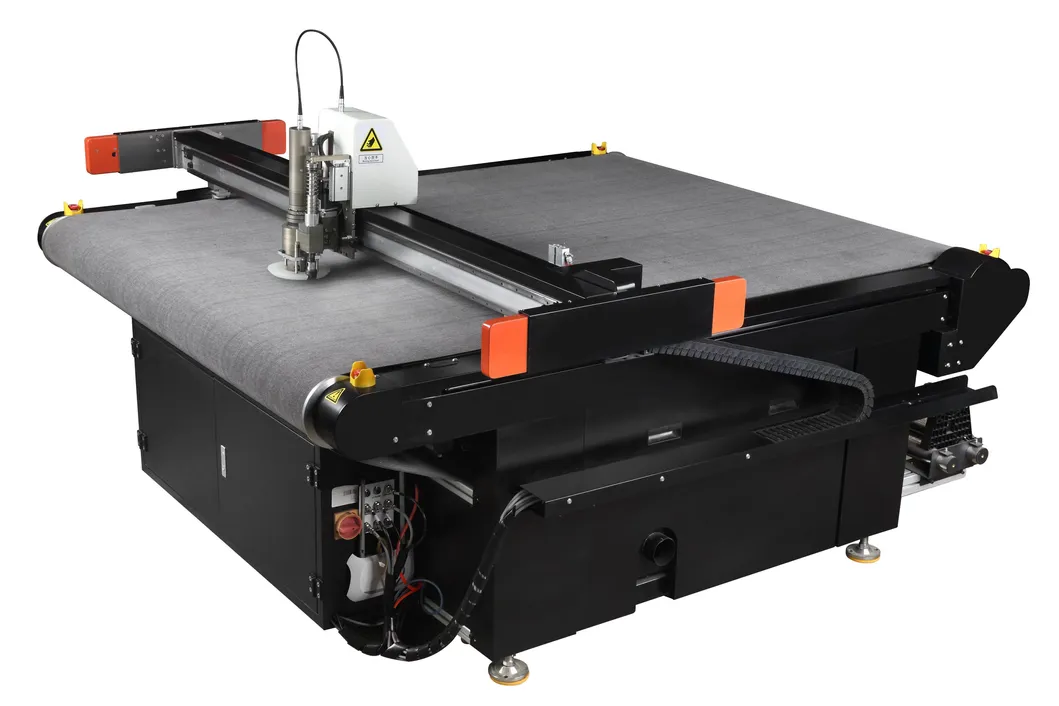

High-Precision Apparel Fabric Cutter

Understanding the High Precision Fabric Cutting Machine

In the fast-paced apparel industry, precision and efficiency are non-negotiable. The high precision fabric cutting machine from AOTOBOT is engineered to address the core pain points of traditional cutting processes—low accuracy, material waste, and short service life. As a long life fabric cutting machine, it integrates 40 years of Japanese cutting technology and premium imported components, making it a reliable solution for apparel factories, textile workshops, and soft material processing enterprises. Whether cutting delicate knitted fabrics or durable canvas, this machine delivers consistent results, helping businesses reduce costs and boost production efficiency.

Product Parameters

Model No.	B3-1013	B3-1815	B3-2516	B3-2518
Effective Work Area (L × W)	1000 × 1300mm	800 × 1500mm	2500 × 1600mm	2500 × 1800mm
Special Size	Customizable
Cutting Material	Knitted Fabric, Woven Fabric, Shearling, Pu Leather, Oxford, Canvas, Sponge, Fake Leather, Cotton & Linen, etc.
Cutting Thickness	≤5MM
Cutting Speed	300 ~ 800mm/s
Cutting Precision	≤0.1MM
Repeated Accuracy	≤0.1MM
Fixing Method	Vacuum Suction
Driving System	Intelligent digital control servo system
Command Format	DXF, HPGL compatible
Control Panel	Multi-language LCD touch panel
Power Supply	AC220 / 380V 50 ~ 60HZ
Working Environment	Temperature: -10ºC ~ 40ºC, Humidity: 20% ~ 80% RH



Functionality of the Long Life Fabric Cutting Machine

Automatic Nesting System for Material Efficiency

Equipped with an automatic nesting system, the machine optimizes fabric layout quickly and efficiently. It minimizes material waste by intelligently arranging cutting patterns, saving both time and costs for apparel manufacturers—especially crucial for high-value fabrics.

Continuous Conveyor Table Feeding

The conveyor table enables non-stop feeding, supporting ultra-long cutting tasks. Unlike traditional machines limited by table length, this feature allows cutting of extended fabrics for large products like sofas, carpets, or industrial textiles without interruptions.

360° Infrared Sensing Safety Protection

Safety is prioritized with a 360° infrared induction anti-collision system and physical anti-collision mechanism. The dual safety design ensures operator protection during high-speed operation, eliminating potential risks in busy production environments.

Multi-Tool Compatibility for Versatility

Standard tools include a driven rotary tool, multi-function punch tool, cursor, and pen—meeting diverse cutting needs in the apparel industry. Optional tools like an electric oscillating tool, projector system, and camera further expand its capabilities for specialized tasks.

Characteristic Advantages of the Apparel Industry Fabric Cutter

Superior Precision (≤0.1MM) for Perfect Cuts

With imported YASAKAWA servo motors and linear guides, the machine achieves cutting precision and repeated accuracy of ≤0.1MM. This level of accuracy ensures consistent, high-quality cuts for intricate apparel patterns and detailed designs.

Long Service Life with Premium Components

All main devices are imported from Japan, and the machine adheres to Japanese manufacturing standards—far exceeding domestic benchmarks. The robust build and intelligent digital control servo system guarantee stable performance and an extended service life, reducing maintenance costs.

Doubled Cutting Speed via Patent Double Knife Plate

AOTOBOT’s patented double knife plate technology doubles cutting speed, enhancing production efficiency significantly. The high-speed driven rotary tool excels at single-layer material cutting without the need for laminating, saving pre-processing time.

Customizable Solutions for Diverse Needs

Whether it’s a special work area size or tailored tool configurations, the machine offers full customization. This flexibility makes it suitable for small workshops and large-scale factories alike, adapting to different production requirements.

User-Friendly Operation

The multi-language LCD touch panel simplifies operation, allowing workers to master the machine quickly. The Ethernet port ensures seamless connectivity with CAD systems, streamlining the workflow from design to cutting.

Applications of the High Precision Fabric Cutting Machine

This apparel industry fabric cutting machine is versatile across multiple sectors:

Apparel Manufacturing: Cutting knitted, woven, and cotton-linen fabrics for clothing.

Luggage & Bags: Processing Oxford cloth, canvas, and fake leather for bags and suitcases.

Home Furnishings: Cutting sofa fabrics, carpets, and mats.

Medical Textiles: Precision cutting of medical fabrics for bandages and uniforms.

Industrial Textiles: Handling glass fiber, synthetic materials, and aerospace fabrics.

FAQ About the Long Life Fabric Cutting Machine

Is this machine suitable for small to medium apparel factories?

Absolutely. It offers customizable work areas and tool configurations to fit small-batch production and large-scale operations. The automatic nesting system saves materials, and the user-friendly design requires minimal training—ideal for SMEs.

What file formats does the machine support?

It is compatible with DXF and HPGL formats, seamlessly integrating with most CAD software used in the apparel industry.

How is after-sales service ensured?

We have a professional after-sales team with engineers boasting over 10 years of experience. We provide on-site installation, training, and global distributor support for daily maintenance and repairs.

Can it cut thick materials like sponge or canvas?

Yes. The machine supports cutting thicknesses up to 5MM, including sponge, canvas, Pu leather, and other thick fabrics used in furniture and luggage production.
