Versatile Sportswear Underwear Cutter

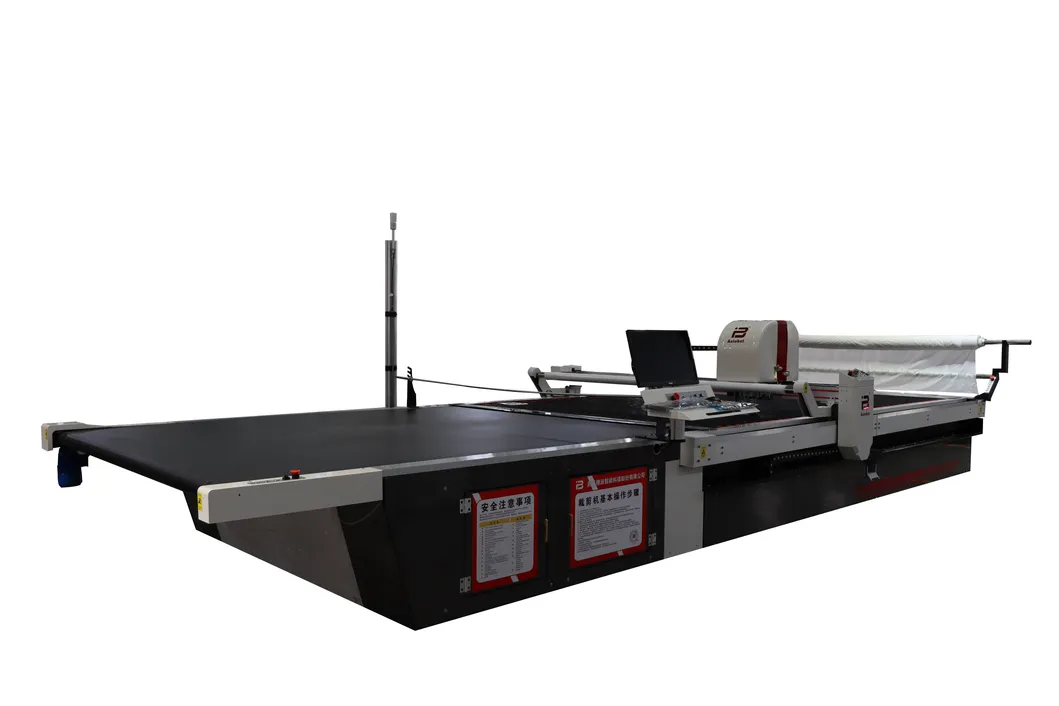

Understanding the M21 Fabric Cutting Machine

The M21 sportswear fabric cutting machine is a high-performance automatic cutting solution developed by AOTOBOT, a national high-tech enterprise with 40 years of manufacturing expertise. Integrating advanced Japanese technology, this machine is tailored for soft material cutting industries, specializing in underwear fabric cutting , sportswear fabric processing, and children's wear production. It combines precision, efficiency, and versatility, becoming a core equipment for businesses pursuing automated and intelligent fabric cutting workflows.

Product Parameters of M21 Sportswear Fabric Cutting Machine

Parameter	Specification
Model NO.	M21
Cutting Width	1950mm
Cutting Length	3300mm
Maximum Cutting Height	75mm/110mm
Cutting Speed	Top speed 45m/min
Cutting Accuracy	±1mm
Cutting Method	Straight knife reciprocating clipping
Knife Specification	Automatic sharpening, width 8mm, thickness 2.0/2.5mm
Drills	Solid 1.6/2/3mm; hollow drilling 4-20mm (optional)
Power Supply	Three phase 380V, 22KW
Compressed Air	-20KP
Machine Dimensions	7100×2600×1400mm
Conveyor Area	2450×2100mm (customizable 3000/3500mm)
Weight	5000KG
Control System	PC desktop computer, Chinese & English language
Warranty	1 year
Certification	CE, ISO



Functionality of the M21 Automatic Fabric Cutter

Vacuum Adsorption System

The machine is equipped with a separate frequency conversion adsorption system, featuring stronger vacuum adsorption pressure. The exhaust decompression and cooling chamber design effectively fixes light and thin impermeable fabrics, avoiding displacement during cutting and ensuring consistent precision.

Automatic Cutting & Drilling Integration

It supports automatic positioning and drilling , compatible with solid drills (1.6/2/3mm) and optional hollow drills (4-20mm) to meet diverse processing needs. The automatic indicator for grinding and blade changing reminds operators of maintenance timings, reducing manual inspection and improving production continuity.

Intelligent Control & Maintenance

Operated via a PC desktop computer with dual-language support, the M21 cutter is easy to integrate with CAD design software. The automatic cleaning bristle device and air float linkage system simplify daily maintenance, while the fault detection automatic indicator promptly alerts to issues, minimizing downtime.

Characteristic Advantages

Patented Double Blade Plate Design

AOTOBOT’s exclusive patented double blade plate technology doubles the cutting speed compared to traditional single-blade machines. It enhances cutting stability, especially for soft and thin fabrics, ensuring clean cuts without fraying.

High-Quality Imported Components

Powered by YASAKAWA motor and drive system (imported from Japan), the machine operates with low noise, high cutting strength, and fewer vulnerable parts. All core components meet Japanese standards, guaranteeing long-term reliable operation.

Versatility & Customization

Beyond sportswear and underwear fabric, the M21 cutter is suitable for swimwear and children's wear materials. Optional features like knife cooling and device movement allow customization to match specific production requirements.

Efficient Large-Scale Production

With a production capacity of 10,000 units per year, the machine supports mass manufacturing. Its transverse movement capability enables multi-line cutting work areas, maximizing workshop space utilization and productivity.

Applications of the M21 Underwear Fabric Cutting Machine

The M21 automatic fabric cutting machine is widely used in:

• Children's wear production (handling lightweight, delicate fabrics with precise cutting needs)

• Swimwear manufacturing (compatible with waterproof and elastic fabrics)

• Underwear processing (soft, thin fabric cutting with high precision)

• Traditional textile and clothing factories

• Medium to large-scale garment enterprises pursuing automated production

FAQ About the M21 Sportswear Fabric Cutting Machine

Is AOTOBOT a factory or a trading company?

ZHEJIANG BOPAI INTELLIGENT TECHNOLOGY CO., LTD. (AOTOBOT) is a national high-tech enterprise specializing in R&D, production, sales, and service of intelligent cutting equipment. With over 15 years of manufacturing experience, our products are exported to more than 80 countries and regions.

What makes the M21 cutter stand out?

Our cutting system technology originated from Japan 40 years ago. The M21 features a patented double blade plate, YASAKAWA motor, automatic bristle cleaning, and air cooling system, delivering double speed, high precision, and durability.

How is the installation and after-sales service?

We have a professional after-sales team with engineers having over 10 years of experience. We provide on-site training and installation, and global distributors ensure timely daily support.

How to guarantee product quality?

Our products exceed domestic standards and meet Japanese standards. All main devices are imported from Japan, and 40 years of manufacturing experience ensures stable operation with minimal issues.
