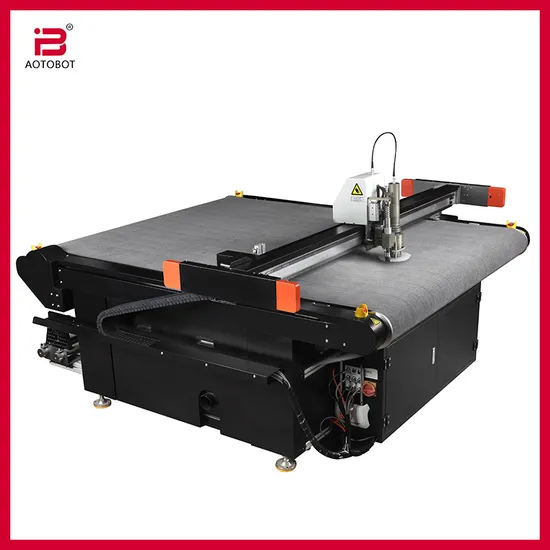

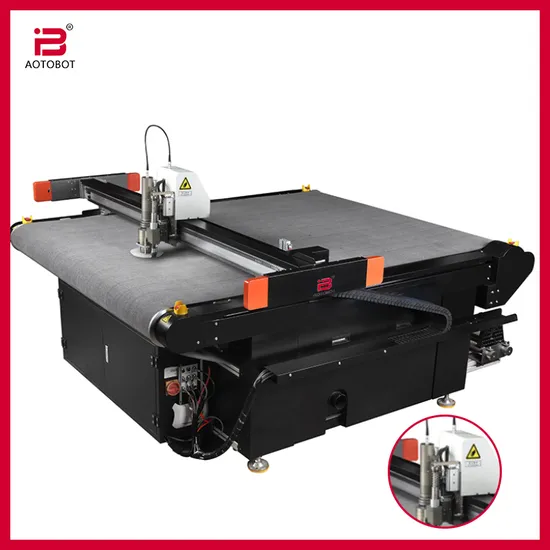

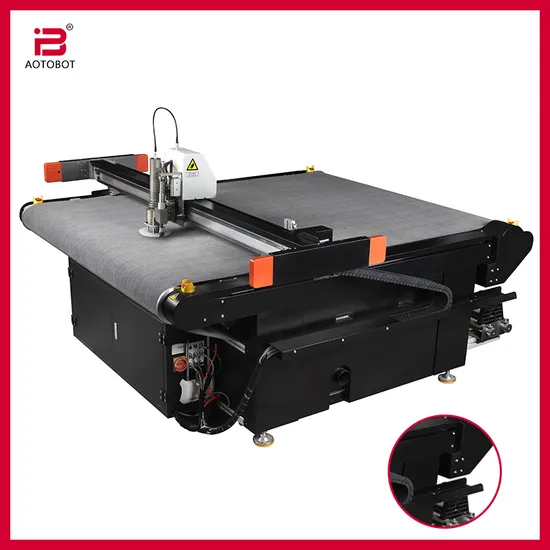

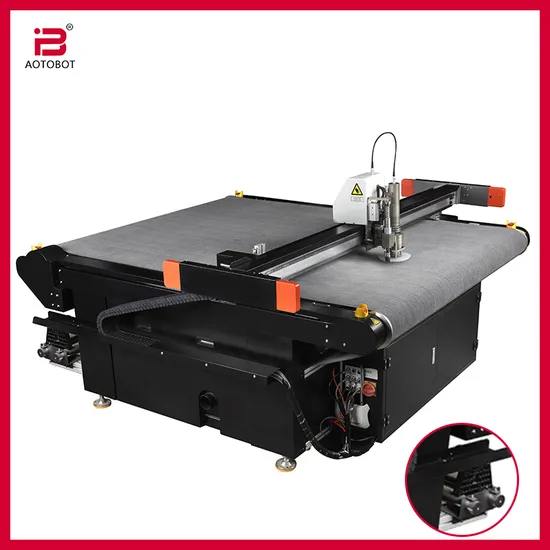

Oscillating Knife Fabric Sample Table Cutter for Garment Fabric Cloth Making

Sample-Table Oscillating Knife Cutter

Customization:	Available
After-sales Service:	After-Sale Services Available
Voltage:	AC220 / 380V

Quantity:
Availability:





Inquire Add to Basket

Product Description

Understanding the Oscillating Knife Fabric Sample Cutter

Garment sample development demands speed, precision, and flexibility—and the oscillating knife fabric sample table cutter delivers on all fronts. Designed specifically for cloth making samples, this machine uses advanced oscillating knife technology to cut single-layer fabrics cleanly without laminating. It’s a game-changer for apparel designers and sample workshops, reducing sample lead times and ensuring accurate reproduction of designs.

Product Parameters

Model No.	B3-1013	B3-1815	B3-2516	B3-2518
Effective Work Area (L × W)	1000 × 1300mm	800 × 1500mm	2500 × 1600mm	2500 × 1800mm
Special Size	Customizable
Cutting Material	Knitted Fabric, Woven Fabric, Shearling, Pu Leather, Oxford, Canvas, Sponge, Fake Leather, Cotton & Linen, etc.
Cutting Thickness	≤5MM
Cutting Speed	300 ~ 800mm/s
Cutting Precision	≤0.1MM
Repeated Accuracy	≤0.1MM
Fixing Method	Vacuum Suction
Driving System	Intelligent digital control servo system
Command Format	DXF, HPGL compatible
Control Panel	Multi-language LCD touch panel
Power Supply	AC220 / 380V 50 ~ 60HZ
Working Environment	Temperature: -10ºC ~ 40ºC, Humidity: 20% ~ 80% RH

High speed Driven rotary tool , quick cutting single layer material , no need laminating
With punch tool , pen , meet the cutting needs of a variety of fabrics in the apparel industry
Automatic nesting system : fast and efficient layout , saving time and materials
Conveyor table : continuous feeding , ultra-long cutting , cutting length is not limited by the length of the table
Infrared sensing system : 360'surround security to ensure operator safety
Imported servo motor/linear guide : Stable machine performance , long life and high precision

Functionality of the Garment Fabric Sample Table Cutter

Oscillating Knife for Clean Sample Cuts

The electric oscillating tool (optional) delivers sharp, burr-free cuts for delicate garment samples. It excels at single-layer fabric cutting, eliminating the need for time-consuming laminating and ensuring the sample’s texture and appearance match the final product.

Vacuum Suction Fixing for Stability

The vacuum suction fixing method securely holds fabrics in place during cutting, preventing shifting or wrinkling. This stability is critical for sample accuracy, especially for intricate patterns and small details.

Automatic Bristle Cleaning & Air Cooling

The machine features automatic bristle cleaning and an air cooling system, maintaining tool performance and extending the oscillating knife’s service life. This reduces downtime for maintenance, keeping sample production on track.

Projector & Camera for Precision Alignment

Optional projector and camera systems enable precise pattern alignment, ensuring samples adhere strictly to design specifications. This is ideal for complex patterns and color-matched samples.

Characteristic Advantages of the Oscillating Knife Sample Cutter

Oscillating Knife Technology for Sample Perfection

The oscillating knife cuts through fabrics smoothly without fraying, preserving the material’s integrity—essential for garment samples that showcase design quality to clients.

Rapid Sample Production (300~800mm/s)

With a cutting speed of 300~800mm/s, the machine accelerates sample development, allowing designers to iterate quickly and meet tight deadlines. The automatic nesting system further optimizes efficiency by reducing material waste.

Customizable Work Areas for Various Samples

From small fabric swatches to full-size garment samples, the machine’s customizable work area (up to 2500 × 1800mm) adapts to diverse sample sizes. Special sizes are available to fit unique production needs.

CE & ISO Certified Quality

Compliant with CE and ISO standards, the machine meets international quality and safety requirements. It’s built with imported components, ensuring reliable performance for long-term sample production.

Intuitive Operation for Design Teams

The multi-language LCD touch panel and compatibility with DXF/HPGL formats make the machine easy to integrate into design workflows. Even non-technical staff can operate it with minimal training.

Applications of the Fabric Sample Table Cutter

This garment fabric sample cutter is tailored for sample-focused scenarios:

Garment Sample Development: Cutting prototypes for dresses, shirts, and outerwear.

Luggage & Accessories: Creating samples for bags, wallets, and belts.

Home Furnishing Samples: Developing fabric samples for sofas, cushions, and curtains.

Small-Batch Production: Fulfilling custom orders or limited-edition runs.

Textile Testing: Cutting fabric samples for quality and durability testing.

FAQ About the Oscillating Knife Fabric Sample Cutter

Can it cut different types of garment fabrics?

Yes. It handles knitted fabric, woven fabric, cotton & linen, Pu leather, sponge, and more—covering all common materials used in garment sample making.
