7-Inch Touch-Screen Fabric Cutter

Understanding the 1815 Continuous Feeding Fabric Cutting Machine

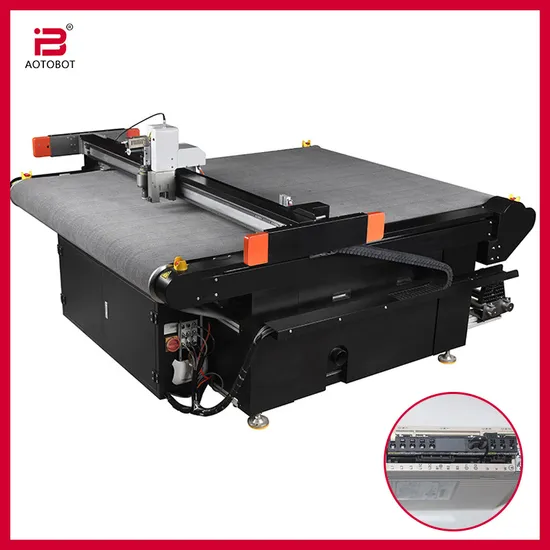

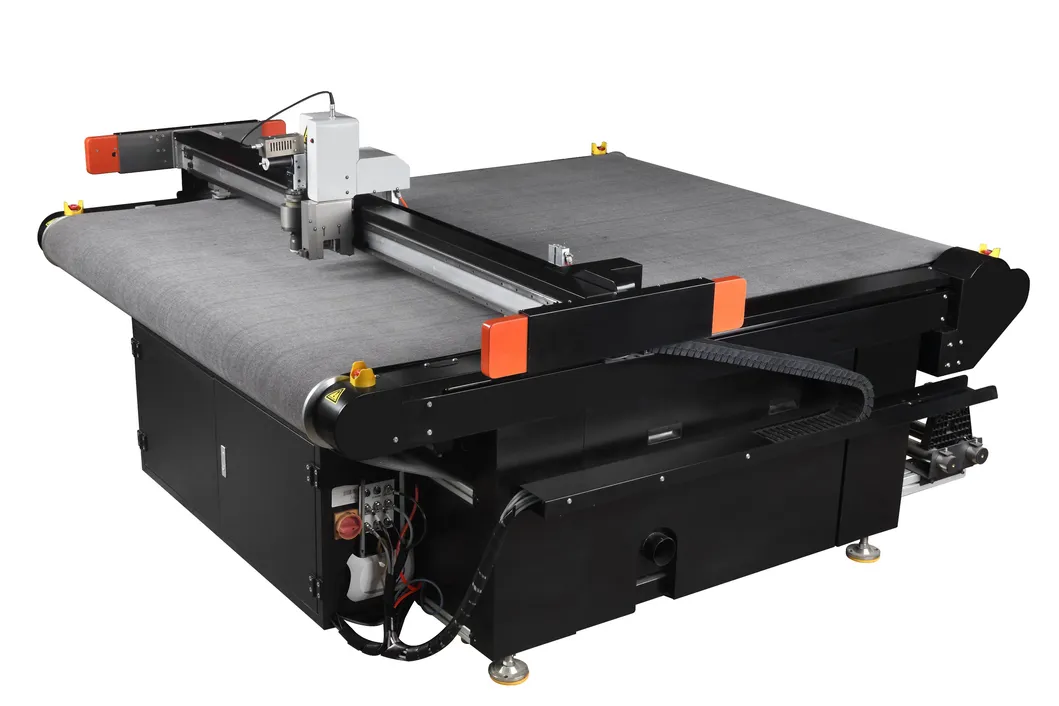

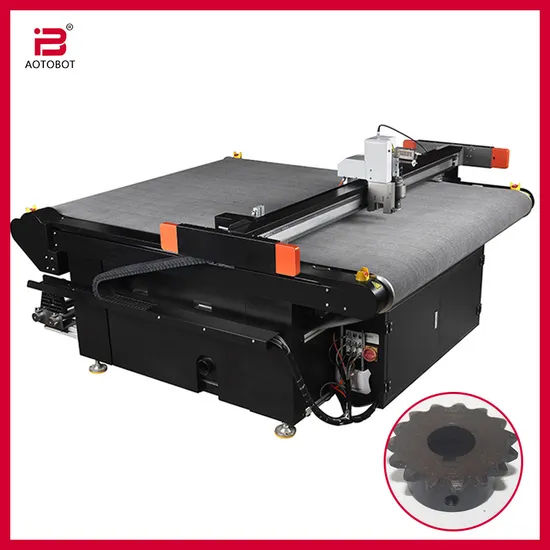

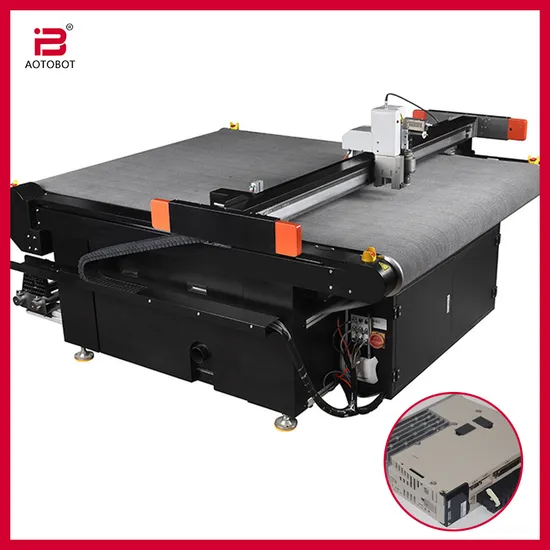

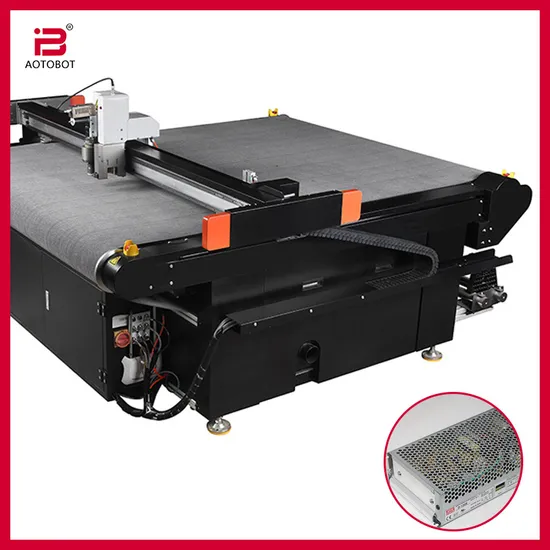

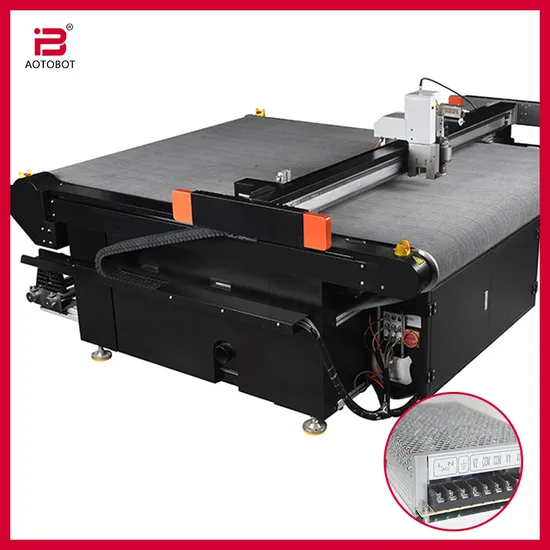

The 1815 Continuous Feeding Fabric Cutting Machine is a high-precision, automatic cutting solution designed for diverse fabric types, featuring a 7-inch touch screen for intuitive operation. Engineered by AOTOBOT, this machine combines continuous feeding technology with micron-level precision, making it ideal for industries requiring efficient, long-length cutting—from clothing to luggage and sofa manufacturing. Its versatile design handles everything from thin knitted fabrics to thick sponges, delivering consistent results while maximizing productivity.

Product Parameters of 1815 Continuous Feeding Fabric Cutting Machine

Parameter	Specification
Model Series	B1-1013, B1-1815, B1-2516, B1-2518
Effective Work Area (L×W)	B1-1013: 1000×1300mm; B1-1815: 800×1500mm; B1-2516: 2500×1600mm; B1-2518: 2500×1800mm (Customizable)
Cutting Thickness	≤30mm
Cutting Speed	300~800mm/s
Cutting Precision	≤0.1mm
Repeated Accuracy	≤0.1mm
Fixing Method	Vacuum suction
Driving System	Intelligent digital control servo system
Control Panel	7-inch multi-language LCD touch screen
Command Compatibility	DXF, HPGL formats
Suction Power	1.5KW - 9KW (Variable frequency air pump optional)
Power Supply	AC220V / 380V 50~60HZ
Safe Device	Physical anti-collision mechanism; Infrared induction anti-collision
Standard Tool	Driven rotary tool, Cursor, Pen
Optional Tool	Electric oscillating tool, Projector system, Camera
Machine Dimensions (L×W×H)	2300×800×1700mm
Working Environment	Temperature: -10ºC~40ºC; Humidity: 20%~80% RH
Certification	CE, ISO
Warranty	1 Year





Functionality of 1815 Continuous Feeding Fabric Cutting Machine

Automatic Nesting & Continuous Feeding

The machine’s integrated automatic nesting system optimizes fabric layout to minimize waste, saving time and materials. Its conveyor table enables continuous feeding, allowing unlimited cutting length—eliminating restrictions from traditional fixed tables and ideal for long-run production.

High-Precision Cutting System

Powered by an intelligent digital control servo system and imported linear guides, the 1815 delivers ≤0.1mm cutting precision and repeated accuracy. This ensures consistent sizing for high-quality finished products, even when cutting complex shapes or thick materials like foam and leather.

Intuitive Operation & Safety Features

The 7-inch multi-language touch screen simplifies setup and operation, reducing training time for operators. A 360° infrared induction anti-collision system and physical anti-collision mechanism provide comprehensive safety, preventing accidents during high-speed operation.

Stable Vacuum Suction Platform

The honeycomb aluminum plate platform offers exceptional flatness and strong suction, securing fabrics firmly during cutting. This is crucial for preventing slippage in materials like PU leather, canvas, and cotton & linen, ensuring clean, precise cuts every time.

Characteristic Advantages

Ultra-Fast Cutting Speed (300~800mm/s)

With a top speed of 800mm/s, this Continuous Feeding Fabric Cutting Machine outperforms traditional cutters, significantly increasing production throughput for high-volume orders.

Micron-Level Precision

The ≤0.1mm cutting and repeated accuracy meet the strict quality requirements of industries like luxury clothing, luggage, and medical textiles, reducing rework and material waste.

User-Friendly & Versatile

The 7-inch touch screen and multi-language support make it accessible to global teams, while customizable work areas and optional tools (e.g., projector system, camera) adapt to diverse production needs.

Durable & Reliable

Built with imported components and adhering to Japan-quality standards, the machine offers long service life and stable performance. The variable frequency air pump option enhances energy efficiency and suction flexibility.

Applications of 1815 Continuous Feeding Fabric Cutting Machine

Suitable Fabrics

Knitted Fabric, Woven Fabric, Shearling, PU Leather, Oxford, Canvas, Sponge, Fake Leather, Cotton & Linen, and other soft materials.

Target Industries

Clothing Manufacturing: Fashion apparel, sportswear, children's clothing.

Luggage & Bag Production: Backpacks, handbags, travel bags.

Home Furnishing: Sofa covers, cushions, curtains, carpets.

Medical Textiles: Disposable gowns, bandages, bed linens.

Mat & Carpet Industry: Indoor/outdoor mats, decorative carpets.

FAQ About 1815 Continuous Feeding Fabric Cutting Machine

What is the core advantage of the 1815 Continuous Feeding Fabric Cutting Machine?

Its continuous feeding technology eliminates table length limits, while the 7-inch touch screen ensures easy operation. The machine also features AOTOBOT’s patented technologies, imported servo motors, and a double blade plate design (where applicable) for enhanced speed and precision.

Can it handle thick materials like foam or leather?

Yes! The machine supports cutting thickness up to 30mm, making it suitable for materials like sponge, shearling, and PU leather—common in sofa, luggage, and winter clothing production.

How does AOTOBOT ensure product quality?

We have 40+ years of manufacturing experience, with main components imported from Japan. Our products exceed domestic standards and meet Japanese quality requirements, ensuring stable, trouble-free operation.

Is customization available for the work area?

Absolutely! The effective work area is customizable to fit your production needs, and we offer optional tools like electric oscillating tools and camera systems to enhance versatility.
