High-Speed Multi-Layer Industrial Cropping Machine

Understanding the High Speed Multi Layer Cutter M10

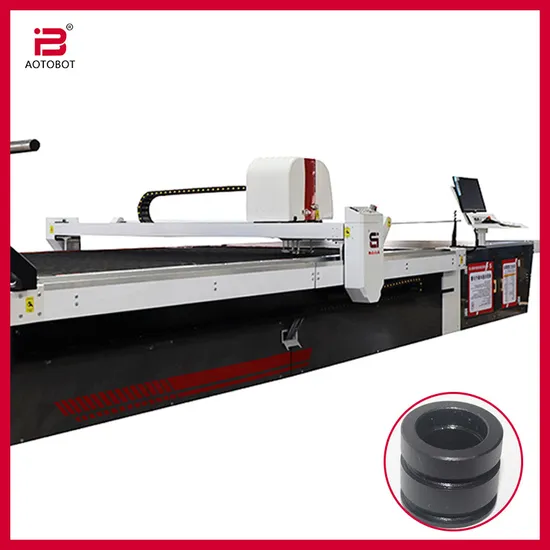

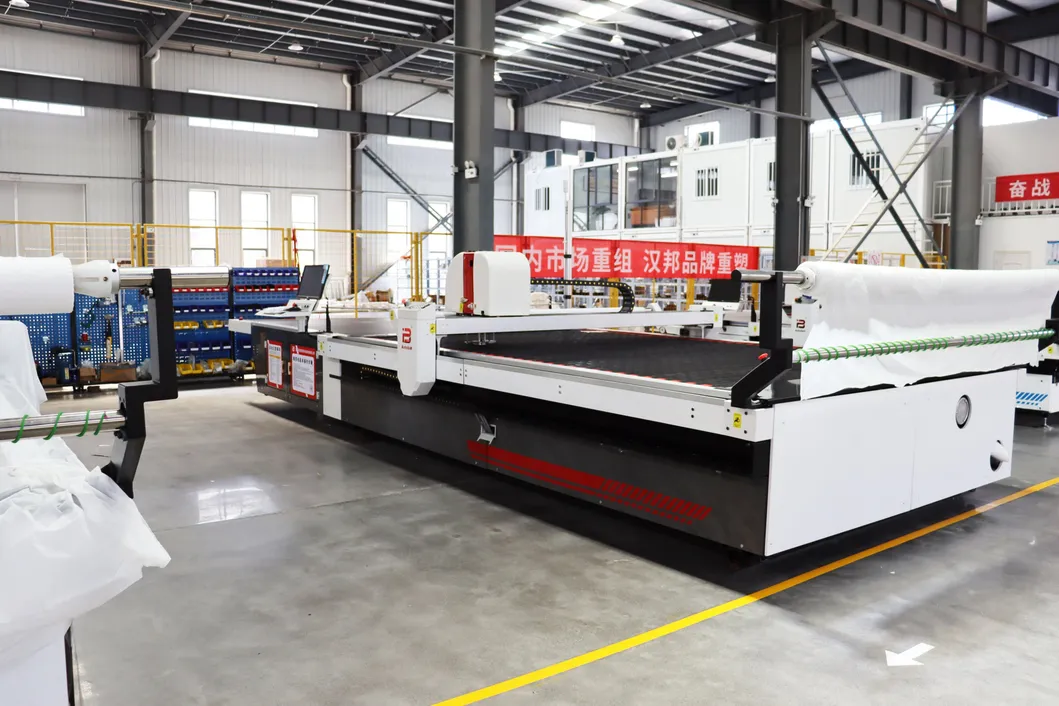

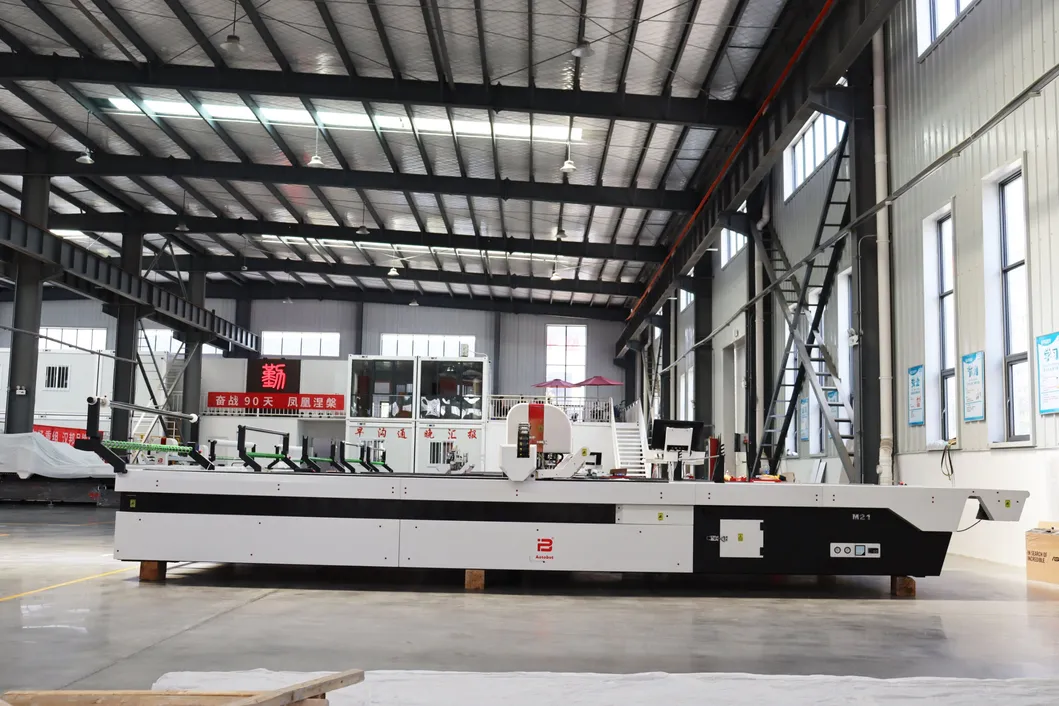

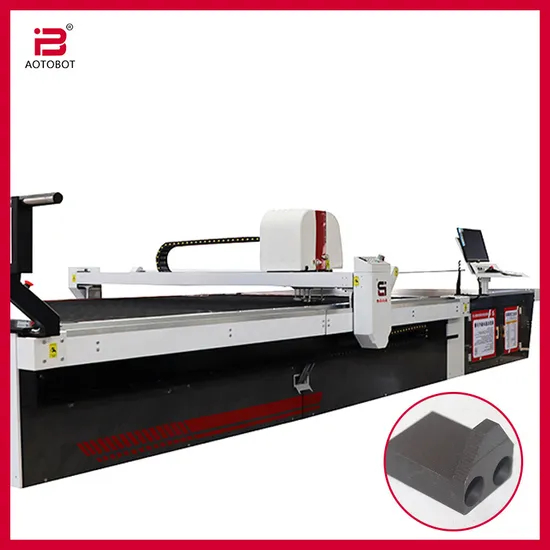

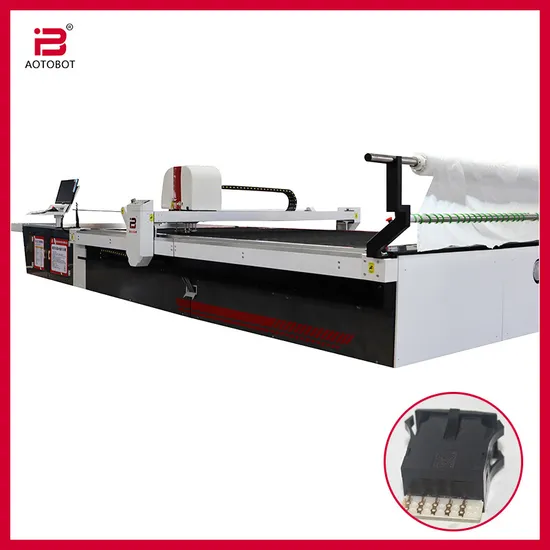

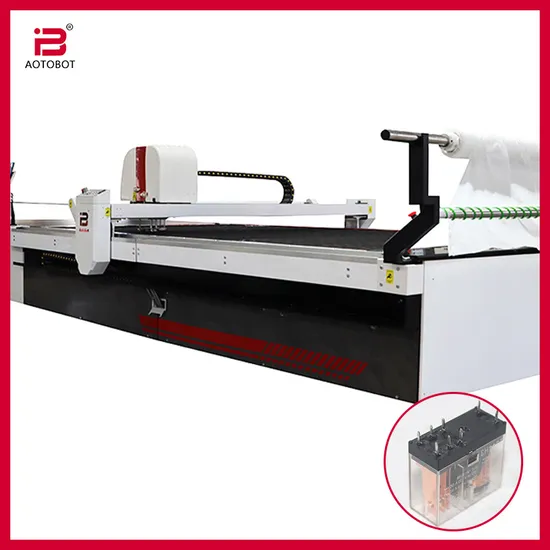

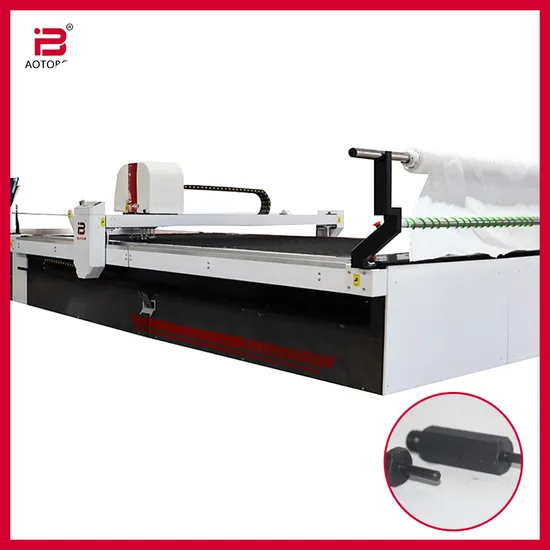

The High Speed Multi Layer Cutter M10 is a premium industrial cropping machine developed by AOTOBOT, a national high-tech enterprise under ZHEJIANG BOPAI INTELLIGENT TECHNOLOGY CO., LTD. With 40 years of cutting technology heritage from Japan and over 15 years of manufacturing experience, this machine is engineered for precision cutting of leather, fabric, cloth, and other soft materials. It integrates advanced intelligent technologies to realize high-speed multi-layer cutting, significantly boosting production efficiency for factories worldwide. Certified by CE and ISO, the Industrial Cropping Machine meets strict international standards and has been exported to more than 80 countries and regions, including Germany, the United States, Brazil, and Vietnam. Whether for small-batch customization or large-scale mass production, it provides a reliable and systematic cutting solution for various industries.

Product Parameters of High Speed Multi Layer Cutter M10

Parameter	Specification
Model NO.	M10
Brand	AOTOBOT
Cutting Width	1650mm
Cutting Length	1900mm
Maximum Cutting Height	75mm
Top Cutting Speed	45m/min
Cutting Accuracy	±1mm
Cutting Method	Straight knife reciprocating clipping
Knife Specification	Automatic sharpening; Width 8mm; Thickness 2.0/2.5mm
Drill Sizes	Solid: 1.6/2/3mm; Hollow (optional): 4-20mm
Power Supply	Three-phase 380V, 22KW
Machine Dimensions	5200×2300×1400mm
Conveyor Area	2450×2100mm (optional custom length: 3000/3500mm)
Vacuum Method	Separate frequency conversion adsorption
Operation System	PC desktop computer; Chinese/English language
Compressed Air Requirement	-20KP
Standard Color	White
Weight	4000KG
Warranty	1 year
Certification	CE, ISO





Functionality of Industrial Cropping Machine M10

Automatic Core Functions

The High Speed Multi Layer Cutter is equipped with a full set of automatic functions to minimize manual intervention. It features automatic covering film, automatic positioning and drilling, and an automatic cleaning bristle device to keep the cutting area free of debris. An automatic indicator for grinding and blade changing reminds operators to maintain the knife in a timely manner, while the automatic fault detection indicator promptly alerts to potential issues, ensuring uninterrupted production.

Advanced Cutting & Conveying System

Adopting a straight knife reciprocating clipping method, the machine supports multi-layer cutting up to 75mm in height. The automatic sharpening function maintains the knife’s sharpness for consistent cutting quality. The separate frequency conversion adsorption system provides strong vacuum pressure, with an exhaust decompression and cooling chamber design to stabilize adsorption even during high-speed operation. The conveyor system works seamlessly with the cutting mechanism, ensuring smooth material feeding and discharging.

Intelligent Operation & Adaptability

Operated via a PC desktop computer, the machine supports both Chinese and English languages, catering to global users. It can move transversely to meet the needs of multi-line cutting work areas, making it suitable for flexible production layouts. Optional functions such as knife cooling and device movement further enhance its adaptability to different production scenarios.

Characteristic Advantages of High Speed Multi Layer Cutter

Patented Double Blade Plate Technology

Bopai Company holds a patent for the double blade plate design, which doubles the cutting speed while ensuring more stable cutting accuracy. This technology is particularly effective for cutting light and thin impermeable fabrics, solving the problem of inaccurate cutting of such materials in traditional machines.

High Speed & Precision

With a top speed of 45m/min, the Leather Fabric Cloth Cutter significantly improves production efficiency compared to conventional cutting equipment. Its cutting accuracy reaches ±1mm, meeting the strict requirements of high-quality products in industries such as clothing and automotive interiors.

Reliable Japanese Components

The machine is equipped with YASAKAWA motor and drive system, with all main devices imported from Japan. This ensures stable operation, low failure rates, and compliance with Japanese quality standards, which are recognized globally for reliability.

Durable & Low Noise

The new crankshaft cutter cutting conveyor reduces noise during operation and enhances cutting strength. The design minimizes vulnerable parts, lowering maintenance costs and extending the machine’s service life, making it a cost-effective investment for long-term production.

Applications of Leather Fabric Cloth Cutter

The High Speed Multi Layer Cutter M10 has a wide range of applications across multiple industries:

Traditional textiles and clothing (including children’s wear, swimwear, underwear)

Outdoor products

Car home furnishing and sofa seats

Medical supplies

Industrial textile industry

Special materials such as glass fiber, aerospace materials, bulletproof materials, and synthetic materials

FAQ About High Speed Multi Layer Cutter M10

Are you a factory or a trading company?

ZHEJIANG BOPAI INTELLIGENT TECHNOLOGY CO., LTD. is a national high-tech enterprise specializing in the design, R&D, production, sales, and service of intelligent cutting equipment. We have over 15 years of manufacturing experience, and our products are exported to more than 80 countries and regions.

What is the advantage of your machine?

Our cutting system technology originated from Japan 40 years ago and has been continuously optimized. The AOTOBOT High Speed Multi Layer Cutter is fully equipped with advanced specifications, including the patented double blade plate for doubled cutting speed. It also features YASAKAWA motor and drive system, automatic adsorption device, bristle cleaning function, air cooling system, and intelligent knife technology, ensuring high efficiency and reliability.

How about the installation and after-sales service?

We have a professional after-sales service team with engineers boasting over 10 years of experience. We can send technical personnel to provide on-site training and installation. Additionally, we have distributors worldwide to handle daily after-sales service needs, ensuring timely support for our customers.

How do you guarantee product quality?

With over 40 years of manufacturing experience, our products exceed domestic standards and meet Japanese quality standards. All main devices are imported from Japan, ensuring stable operation and minimal malfunctions. The machine also holds CE and ISO certifications, further validating its quality and safety.
