Product Parameters
M21 Targeting industry Children's wear, Swimwear, Underwear | Machine type | M21 | Remarks |
| Feature | Name | AOTOBOT | |
| Cutting width | 1950 | |
| Cutting length | 3200 | |
| Maximum Cutting height | 75mm/110mm | |
| Cutting specification | Methods | Straight knife reciprocating clipping | |
| Knives | Automatic sharpening, Knife width 8mm Thickness 2.0, 2.5mm | |
| Speed | Top speed 45m/min | |
| Accuracy | ± 1mm | |
| Drills | Solid 1.6, 2, 3mm | Specification for hollow drilling 4-20mm. Selection |
| Machine specification | Outside dimensions of machine | length width and height 7100*2600*1400mm | |
| Conveyor area | length and width 2450*2100mm | Optional custom length 3000/3500mm |
| Vacuum method | separate frequency conversion adsorption | |
| Operate the computer | pc desktop computer | |
| System specification | language | Chinese ,English | |
| Power | Three phase 380V , 22KW | |
| Others | Compressed air | -20KP | |
| Standard color | White | |
| Weight | 5000KG | |
| Option | Selection, Knife cooling, Device movement | |
Product Description
Standard Configurations
The M21 arrives ready for production with a full suite of automated features designed to reduce manual intervention and keep your cutting line running smoothly.
Material protection & precision alignment – An automatic covering film shields fabric surfaces during cutting, while integrated positioning and drilling ensures markers align perfectly on multi‑ply stacks.
Self‑cleaning & maintenance alerts – The bristle device cleans itself to sustain vacuum efficiency; an indicator light reminds the operator when it’s time to grind or change the blade.
Smart vacuum & fault management – A separate vacuum pump with multi‑section control saves energy by activating only the zones under the cutter. Any fault is immediately detected and displayed, helping you locate issues quickly.
Flexible layout support – The entire cutting head can move transversely, allowing one machine to serve multiple cutting work zones – ideal for workshops with several production lines.
Core Technical Features
Stops lightweight fabrics from shifting during high-speed cutting.
Thin, elastic, or coated materials tend to slide or lift when the blade moves fast. The M21 tackles this with a stronger vacuum pull that runs through a decompression and cooling chamber – so the airflow stays stable without overheating. Multi-layer stacks stay pressed flat, which means your cut edges come out clean and consistent, even on tricky swimwear nylon or film-coated fabrics.
Keeps running day after day with less noise and fewer breakdowns.
A redesigned crankshaft drive makes the cutting conveyor quieter and more powerful, while reducing the number of parts that wear out quickly. You spend less time on repairs and more time cutting. And because the double blade plate (an AOTOBOT patent) absorbs vibration, thin and impermeable materials no longer fray or distort – even after thousands of cycles.
Everything is automated so your operators can focus on output.
From covering film to cleaning bristles, from fault alerts to blade change reminders – the machine handles the routine. The separate vacuum pump only works where it’s needed, saving energy. And the cutting head can move sideways to serve multiple work tables, so one machine does the job of several.
![Cutting Machine Types Applications China Supplier]()

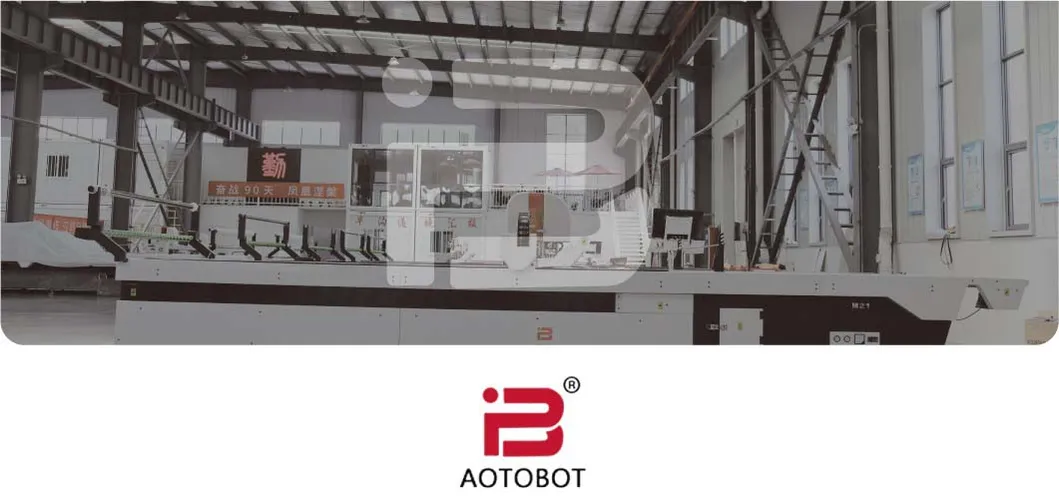

Company Profile
![Cutting Machine Types Applications China Supplier]()
Not sure which cutter fits your material? We help you figure it out first.
Every soft material cuts differently – stretchy swimwear fabric behaves nothing like glass fibre or aerospace composite. The wrong machine choice wastes time and money. Instead of pushing a single model, AOTOBOT starts by understanding your fabric type, lay height, and daily output. Then we recommend the right cutting machine type from our range: CAD, spreading, straight‑knife cutters, or fully automated systems.
One supplier for all your soft‑material cutting needs – from T‑shirts to bulletproof layers.
You don't need to talk to five different vendors for five different materials. We already supply cutting solutions to traditional garment factories, outdoor gear makers, car interior suppliers, medical textile producers, and even manufacturers working with glass fibre, synthetic composites, and bulletproof materials. Keep one partner, cut across industries.
Real local support, not just a shipping label.
A machine is only as good as the service behind it. That's why we set up a branch in Vietnam and work with local distributors in Germany, the US, Brazil, India, Kazakhstan, and elsewhere. When you need installation, training, or a quick fix, there's someone nearby – not just an email address.
Tell us your material. We'll tell you which configuration works.
Extended conveyor? Hollow drilling? Knife cooling for heat‑sensitive layers? Transverse movement for multi‑table operation? You name the requirement, we adjust the configuration. No one‑size‑fits‑all.
Stop browsing spec sheets. Send us your fabric sample – or just describe what you cut – and we'll reply with a clear machine recommendation and a quote.
![Cutting Machine Types Applications China Supplier]()
![Cutting Machine Types Applications China Supplier]()
![Cutting Machine Types Applications China Supplier]()
![Cutting Machine Types Applications China Supplier]()
Q1: What types of cutting machines does AOTOBOT supply for soft materials？
A1: We offer a complete line: CAD solutions for fabric design and nesting, automatic spreading machines, smart fabric cutters, and systematic cutting solutions. For high‑precision multi‑layer cutting, the M21 is one of our most widely used automatic models.
Q2: Which industries can the M21 serve？
A2: It is optimised for children‘s wear, swimwear and underwear, but its cutting capability extends to general apparel, automotive interior fabrics, sofa upholstery, medical textiles and even composite materials like glass fibre.
Q3: Can you provide a custom configuration for my fabric type？
A3: Yes. As a flexible China supplier, we offer options such as extended conveyor length (up to 3500mm), hollow drilling (4‑20mm specifications), knife cooling for heat‑sensitive materials, and transverse machine movement for multi‑table operations. Just share your material details and cutting volume.
Q4: Do you support installation and training overseas？
A4: Yes. We have a strong after‑sales service team with engineers experienced in international installation and training. We also work with distributors in many countries to provide local support.
Q5: How does the M21 guarantee cutting accuracy across different material types？
A5: The combination of straight knife reciprocating clipping, automatic knife sharpening (8mm width, 2.0/2.5mm thickness), and the patented double blade plate design ensures stable ±1mm accuracy, especially on light, thin or non‑breathable fabrics.
