| Machine type | M10 | Remarks |
| Feature | Name | AOTOBOT | |
| Cutting width | 1650 | |
| Cutting length | 3300 | |
| Maximum Cutting height | 75mm | |
| Cutting specification | Methods | Straight knife reciprocating clipping | |
| Knives | Automatic sharpening, Knife width 8mm Thickness 2.0, 2.5mm | |
| Speed | Top speed 45m / min | |
| Accuracy | ± 1mm | |
| Drills | Solid 1.6, 2, 3mm | Specification for hollow drilling 4-20mm. Selection |
| Machine specification | Outside dimensions of machine | length width and height 7100*2300*1400mm | |
| Conveyor area | length and width 2450*2100mm | Optional custom length 3000 / 3500mm |
| Vacuum method | separate frequency conversion adsorption | |
| Operate the computer | pc desktop computer | |
| System specification | language | Chinese ,English | |
| Power | Three phase 380V , 22KW | |
| Others | Compressed air | -20KP | |
| Standard color | White/Grey | |
| Weight | 4000KG | |
| Option | Selection, Knife cooling, Device movement | |
Specification
Automatic covering film
Automatic positioning and drilling
Automatic cleaning bristle device
Automatic air float linkage device
Automatic indicator for grinding and blade changing
Separate vacuum pump and multi-section control
Automatic indicator for fault detection
The cutting machine can move transversely to meet multi-lines of cutting work areas.etc
Function Feature
Vacuum
The vacuum adsorb pressure is stronger , exhaust decompression and cooling Chamber design
New crankshaft
New crankshaft cutter cutting conveyor , lower noise , higher cutting strength ,less vulnerable parts
Double blade plate
Double blade plate design , more stable cutting accuracy , more accurate cutting of lightand thin impermeable fabrics
Functionality: How the M10 Delivers Optimal Performance
Key Operational Functions

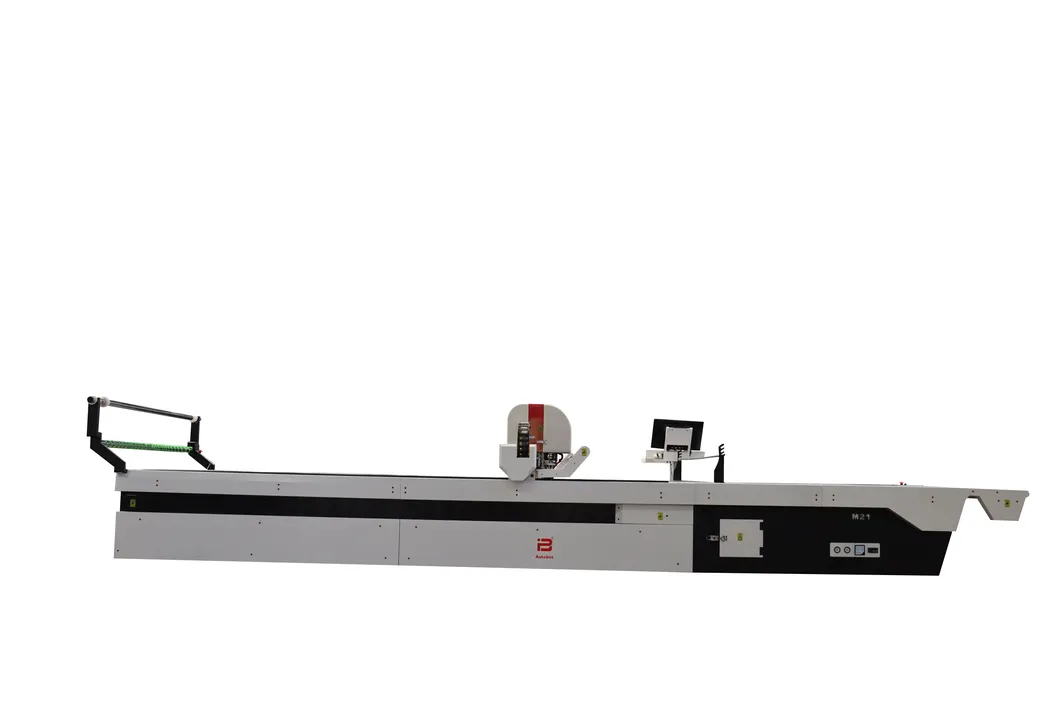

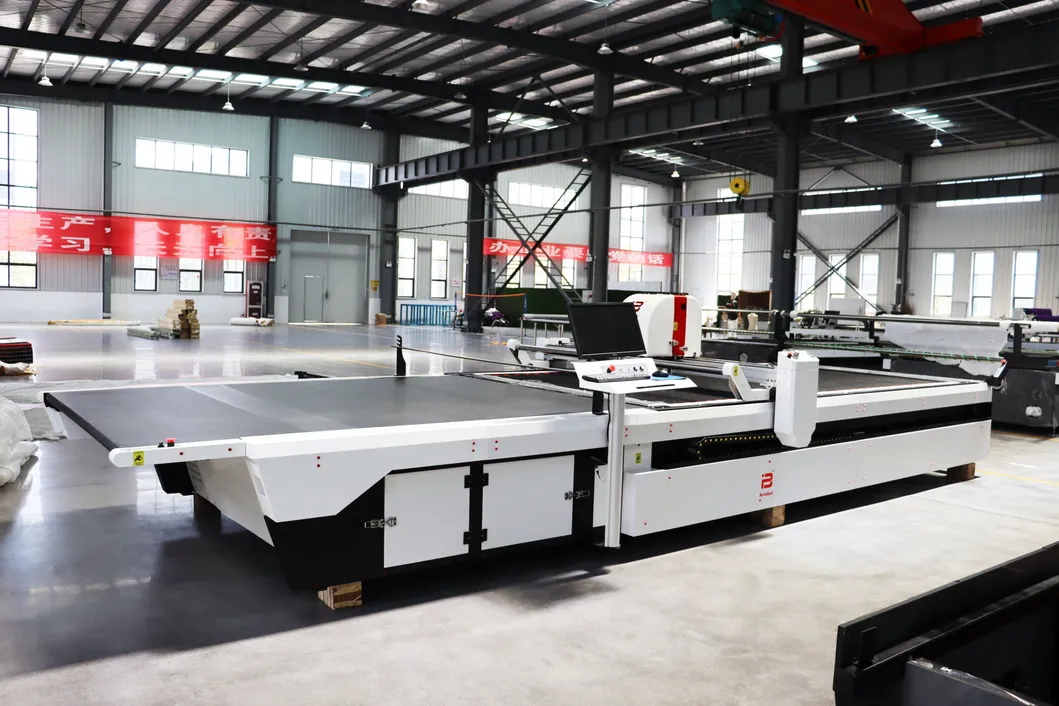

The AOTOBOT M10 Custom Cutting Machine is equipped with a range of automatic functions that simplify operations and enhance accuracy. Core functions include automatic sharpening for 8mm-wide knives (available in 2.0/2.5mm thickness), ensuring consistent cutting performance without manual blade maintenance. The straight knife reciprocating clipping method guarantees clean cuts for both thin and thick materials, while automatic positioning and drilling (with solid drills 1.6/2/3mm and optional hollow drills 4-20mm) supports multi-process integration. Additionally, the machine features automatic cleaning bristle device and fault detection indicators, minimizing downtime and operational errors.
Technical Parameters Support
Underpinning its functionality are industry-leading technical parameters: a cutting width of 1650mm, cutting length of 3300mm, and maximum cutting height of 75mm, enabling multi-layer cropping for high-volume production. With a top speed of 45m/min and precision of ±1mm, the M10 balances speed and accuracy—critical for time-sensitive industries. Powered by a three-phase 380V 22KW motor and equipped with a separate frequency conversion adsorption vacuum system (-20KP), it ensures stable adsorption of even thin, impermeable fabrics. The conveyor area (2450*2100mm, customizable to 3000/3500mm) and PC-based operation system (supporting Chinese and English) further enhance usability.
Characteristic Advantages: Why Choose AOTOBOT M10?
Patented Double Blade Plate Design
A key competitive edge is the patented double blade plate—a Bopai-exclusive innovation that doubles cutting speed while maintaining stability. This design is particularly effective for soft material cutting, ensuring uniform cuts across multi-layer stacks and reducing fabric fraying, a common issue with single-blade machines.
Superior Vacuum Adsorption System
The M10’s vacuum adsorption system features exhaust decompression and cooling chamber design, delivering stronger adsorption pressure than standard machines. This ensures fabrics stay firmly in place during cutting, eliminating slippage and improving precision—essential for high-value materials like aerospace fabrics and bulletproof materials.
Imported Core Components & Quality Assurance
All main devices, including the YASAKAWA motor and drive system, are imported from Japan, adhering to strict Japanese quality standards (surpassing domestic benchmarks). With a 1-year warranty and CE/ISO certifications, the M10 offers long-term reliability, supported by rigorous quality control throughout production.
Application Areas: Versatile Cutting for Diverse Industries
Textile & Clothing Industry
The M10 excels in traditional textiles and clothing, handling everything from apparel fabrics to industrial textiles. Its precision and speed make it ideal for mass-produced garments, while customization options support small-batch, high-variety orders.
Home Furnishing & Automotive Interiors
In the home furnishing sector, it cuts sofa seats, curtains, and bed linens with consistent accuracy. For automotive interiors, it processes seat covers, door panels, and carpet materials, meeting the strict dimensional requirements of the auto industry.
FAQ
Is customization available for the AOTOBOT M10?
Yes, customization is fully available. We offer optional upgrades like device movement, hole punchers, and custom conveyor lengths (3000/3500mm) to meet specific production needs. Our R&D team also provides personalized cutting solutions for special materials.
How does the after-sales service work?
We have a professional after-sales team with engineers boasting over 10 years of experience. We offer on-site installation, training, and maintenance support. Global distributors ensure timely daily after-sales care, backed by a 1-year warranty.
Can the M10 handle multi-layer cutting?
Absolutely—its multi-layer cropping capability, combined with the strong vacuum adsorption system, allows efficient cutting of stacked materials up to 75mm thick, perfect for high-volume production.
