Accurate Light Thin Impermeable Fabric Cutter

Understanding the M20 Multilayer Cropping Cutting Equipment

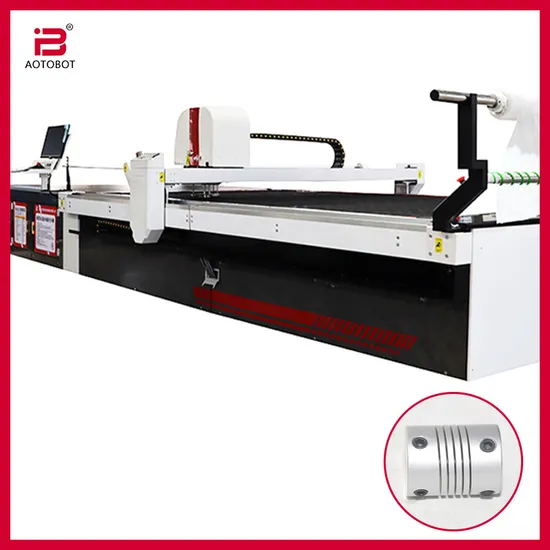

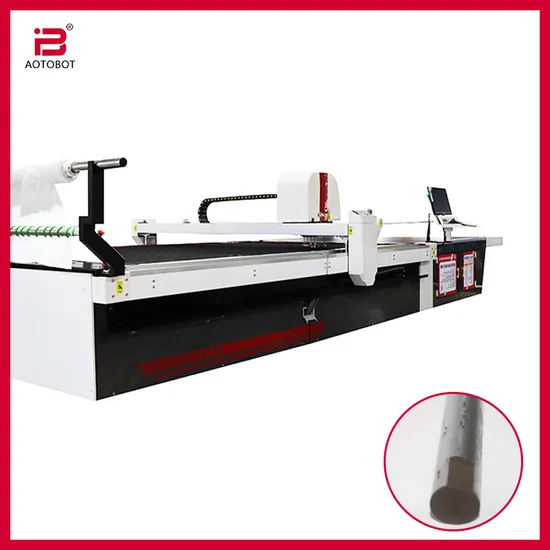

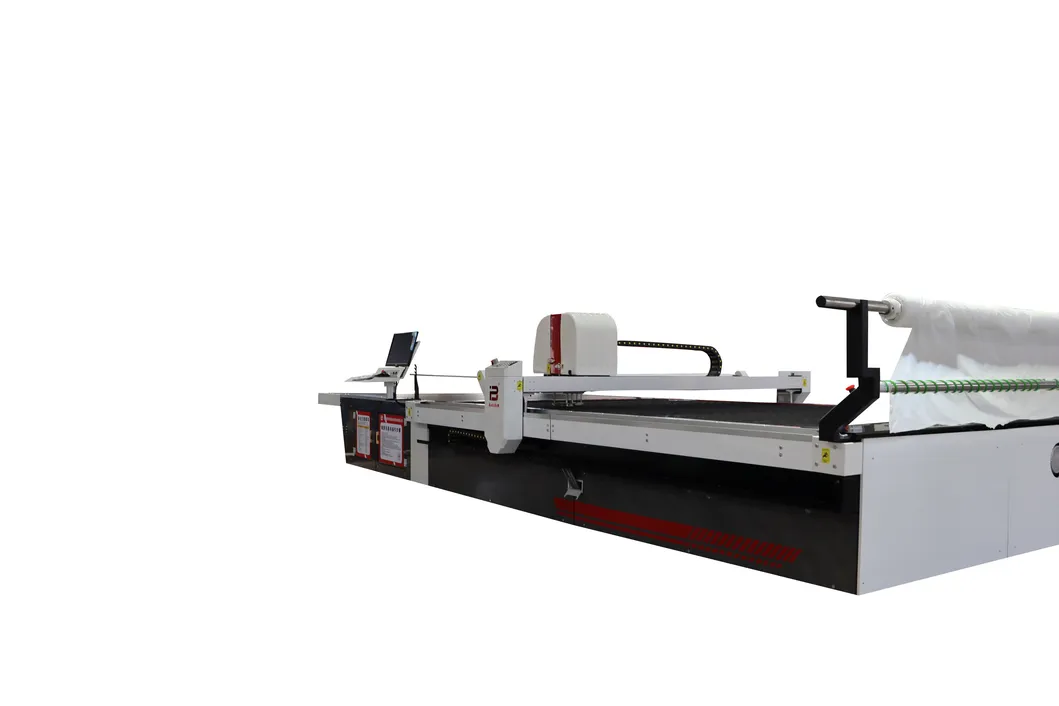

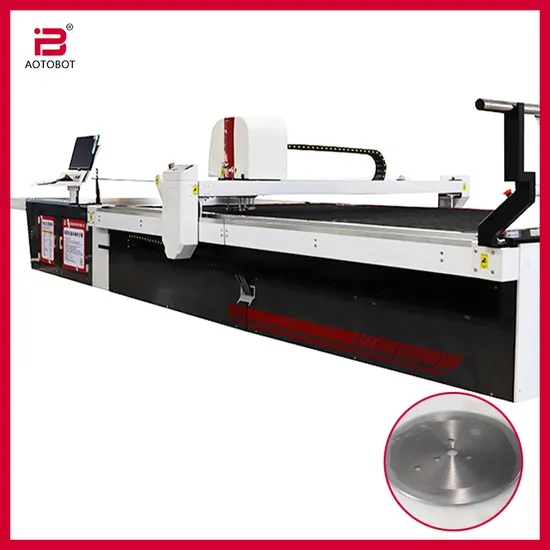

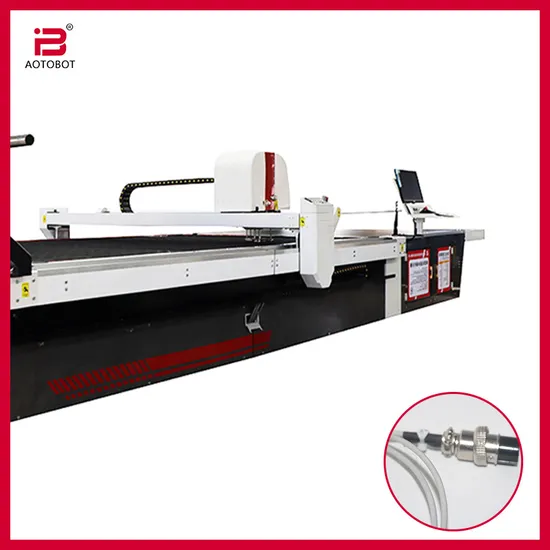

What Is the M20 Automatic Fabric Cutter?

The M20 Light and Thin Impermeable Fabrics Cutting Machine is a state-of-the-art multilayer cropping cutting equipment designed by AOTOBOT, a leading intelligent cutting solution provider. Engineered for precision and efficiency, this automatic fabric cutter addresses the unique challenges of cutting light, thin, and impermeable materials—materials that often slip, shift, or resist clean cuts with traditional tools. Integrating advanced CNC cutting technology and decades of Japanese-inspired engineering, the M20 redefines reliability in soft material processing.

Core Value of Light and Thin Impermeable Fabric Cutting

Light and thin impermeable fabrics (such as polyester blends, waterproof textiles, and lightweight synthetics) are widely used in apparel and textile industries but demand exceptional cutting accuracy to avoid fraying or misalignment. The M20’s core value lies in its ability to deliver consistent cutting accuracy ±1mm across multiple layers, eliminating material waste and ensuring production uniformity. For manufacturers, this translates to higher productivity, reduced costs, and superior end-product quality.

Functionality: How the M20 Fabric Cutting Machine Works

Key Operational Mechanisms

The M20’s functionality revolves around user-centric automation and robust performance:

Automatic covering film: Protects fabrics from dust and damage during cutting, preserving material integrity.

Automatic positioning and drilling: Ensures precise alignment for complex patterns, critical for multilayer projects.

Separate frequency conversion vacuum adsorption: Delivers strong, adjustable suction to secure light fabrics in place, preventing shifting during high-speed cutting.

Straight knife reciprocating clipping: The primary cutting method for clean, sharp edges on impermeable materials, paired with automatic sharpening knives (8mm width, 2.0-2.5mm thickness) for non-stop operation.

Intelligent Auxiliary Features

Complementing its core cutting functions, the M20 includes:

Automatic cleaning bristle device: Maintains cutting area hygiene, reducing downtime for manual cleaning.

Fault detection indicator: Alerts operators to issues in real time, minimizing production disruptions.

Air float linkage device: Facilitates smooth fabric movement without friction, ideal for delicate materials.

PC desktop control system: Supports Chinese and English interfaces, enabling intuitive pattern input and machine operation.

Machine type		M20	Remarks
Feature	Name	AOTOBOT
	Cutting width	1950
	Cutting length	1950
	Maximum Cutting height	75mm/110mm
Cutting specification	Methods	Straight knife reciprocating clipping
	Knives	Automatic sharpening, Knife width 8mm Thickness 2.0, 2.5mm
	Speed	Top speed 45m/min
	Accuracy	± 1mm
	Drills	Solid 1.6, 2, 3mm	Specification for hollow drilling 4-20mm. Selection
Machine specification	Outside dimensions of machine	length width and height 5200*2600*1400mm
	Conveyor area	length and width 2450*2100mm	Optional custom length 3000/3500mm
	Vacuum method	separate frequency conversion adsorption
	Operate the computer	pc desktop computer
System specification	language	Chinese ,English
	Power	Three phase 380V , 22KW
Others	Compressed air	-20KP
	Standard color	White
	Weight	4500KG
	Option	Selection, Knife cooling, Device movement

Specification
  Automatic covering film
  Automatic positioning and drilling
  Automatic cleaning bristle device
  Automatic air float linkage device
  Automatic indicator for grinding and blade changing
  Separate vacuum pump and multi-section control
  Automatic indicator for fault detection
  The cutting machine can move transversely to meet multi-lines of cutting work areas.etc



Function Feature
Vacuum
  The vacuum adsorb pressure is stronger , exhaust decompression and cooling Chamber design
New crankshaft
  New crankshaft cutter cutting conveyor , lower noise , higher cutting strength ,less vulnerable parts
Double blade plate
  Double blade plate design , more stable cutting accuracy , more accurate cutting of lightand thin impermeable fabrics





Characteristic Advantages: Why Choose the M20 Multilayer Cutter

Patented Double Blade Plate Technology

AOTOBOT’s proprietary double blade plate design is a game-changer for light fabric cutting. It enhances stability, reduces vibration, and ensures consistent accuracy—even when processing 75mm/110mm thick multilayer stacks. This patent doubles cutting efficiency compared to single-blade alternatives.

High-Speed & Precision Performance

With a top speed of 45m/min and ±1mm accuracy, the M20 balances speed and precision, outperforming standard fabric cutters. Its new crankshaft cutter system reduces noise and increases cutting strength, while minimizing wear on vulnerable parts—extending machine lifespan.

Durable & Reliable Construction

Built with a 4500kg robust frame and imported Japanese core components (including YASAKAWA motor systems), the M20 meets strict Japanese quality standards. It comes with a 1-year warranty and CE/ISO certification, ensuring long-term reliability for industrial use.

Customizable Flexibility

The M20 offers customization options (e.g., conveyor length up to 3500mm, knife cooling systems) to adapt to diverse production needs. Its transverse movement capability supports multi-line cutting work areas, maximizing factory floor efficiency.

FAQ

Is the M20 suitable for small-batch production?

Yes! While designed for industrial scalability (10,000 units/year production capacity), the M20’s customizable settings and easy operation make it ideal for small to medium businesses. Its multilayer cropping capability reduces setup time for small runs.

What fabrics work best with the M20?

The M20 specializes in light and thin impermeable fabrics, including polyester, nylon, waterproof textiles, non-wovens, and lightweight blends. It also handles delicate knits and cotton fabrics without damage.

How does the vacuum adsorption system perform?

The separate frequency conversion adsorption system delivers strong, adjustable suction (-20KP compressed air) to secure even the thinnest fabrics. It prevents shifting during cutting, ensuring consistent layer alignment.

What after-sales support is available?

AOTOBOT provides global after-sales service, including on-site installation, training, and maintenance. With distributors in 80+ countries and engineers with 10+ years of experience, support is readily accessible.
